Value: $78.95
(as of Jul 13, 2025 09:39:34 UTC – Particulars)

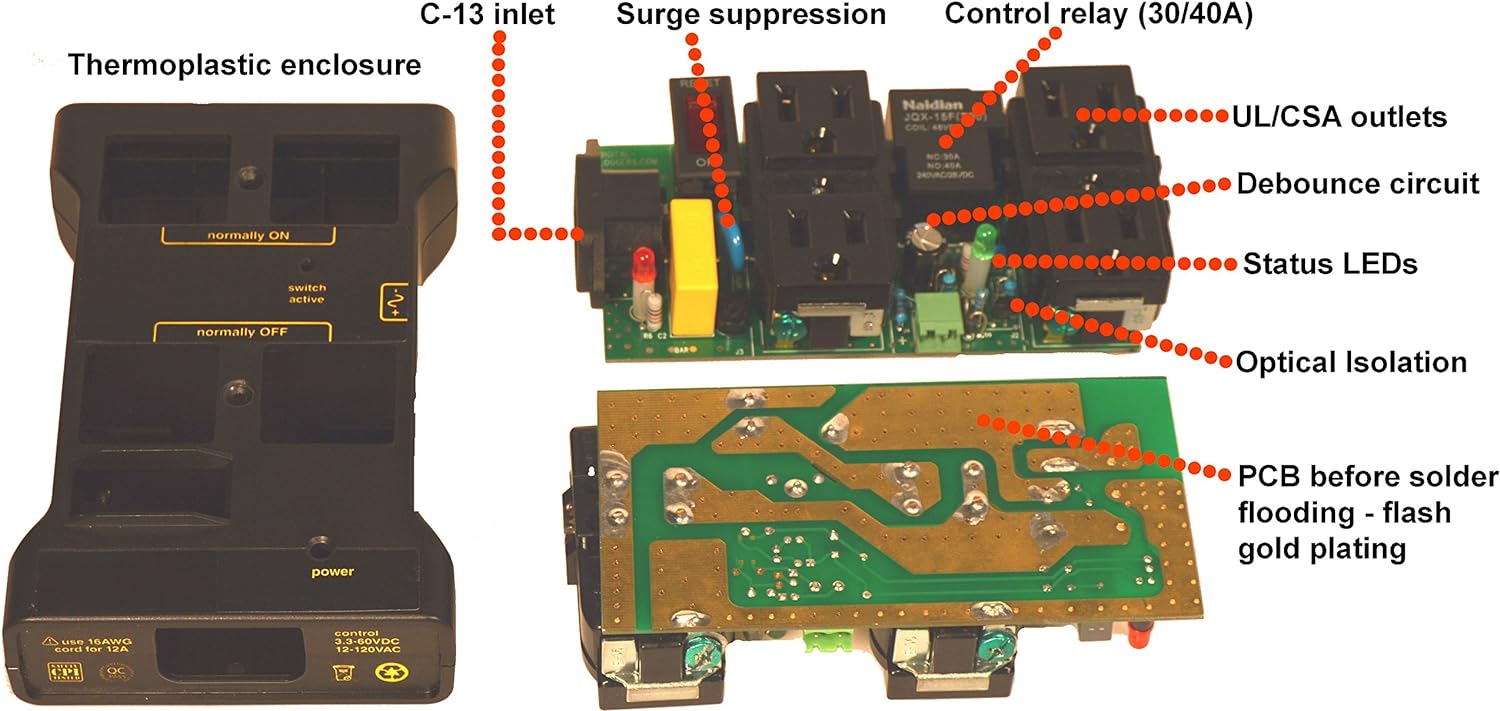

Do you need to management a regular wall outlet machine along with your microcontroller, however don’t need to mess with the high-voltage wiring? The IoT Energy Relay is a controllable energy relay outfitted with 4 outputs that show you how to create an Web of Issues undertaking with protected, dependable energy management. With the IoT Energy Relay you’ll be able to simply management the ability going to a tool with an Arduino, Raspberry Pi or different single-board pc or microcontroller. It gives a substitute for the Energy Swap Tail.
The IoT Energy Relay is designed to permit you to safely management an outlet machine that operates at 3–48VDC or 12–120VAC. Every IoT Energy Relay incorporates a single enter (from the included C13 energy cable) to 4 outputs: one usually on, one at all times on, and two usually off. The sturdy SPDT management relay is rated at 30/40A, for 400,000 operations.
Consists of:
– 1x IoT Energy Relay v2
– 1x C13 Energy Cable
Options:
– Common management voltage 3-60VDC or 12-120VAC
– A single enter sign switches 4 retailers: one usually on, one at all times on, two usually off.
– Optical isolation, relay hysteresis and de-bounce safety add security.
– A big MOV clamps surges for clear 90-140VAC energy.
– The sturdy SPDT management relay is rated at 30/40A, >400,000 operations at 12A or 2 million+ operations at 5A.
– A 12A thermal security circuit breaker change prevents overloads.
– Mounting tab with two screw holes
Protected, Dependable Energy Management
One circuit, 4 retailers, 2x NC, 2x NO
Wires to your Arduino, Raspberry Pi, PIC, or different micro
Takes the place of a relay board. Absolutely assembled and able to use.
Consists of surge supression, debounce, security breaker
